Fabrication and Welding Examples

Certifications:

ISO 9001

ISO 14001

BS EN 287

BS EN 288

ASMI IX (9)

PEM Sheet metal has 43 years of experience in all aspects of metal fabrication.

We supply sub contract sheet metal fabrications in mild steel, stainless steel and aluminium as well as exotic metals such as titanium when required. We couple the manual skills required to accurately fabricate products with our capacities in advanced 3D CAD, Laser Cutting, CNC punching and forming together with our extensive capabilities in precision TIG and MIG / MAG welding. Robotic welding is offered using 450A ArcMate System. We can fabricate in ether sheet materials or using angles, box sections or tube.

We produce metal fabrications for electrical, electronic and medical applications as well as products for the marine and architectural markets.

PEM Sheet metal has fabricated products a few inches in each dimension up to large items such as the load enclosures for transport lorries for the nuclear industry and Faraday cages to electronically screen whole laboratories. Architectural applications have included stainless cladding for the inside of elevators in prestigious buildings, the doors for exhibition centres and the stainless steel work on the escalators in underground tube stations. We have even fabricated a nine foot high, 100kg cross which sits on the spire of a local church.

Coded Welding to ASME IX and BS 287 BS 288

Coded Welding to ASME IX and BS 287 BS 288 equivalence is available. We currently work in various industries including Transportation and Rail, Food Medical and Pharmaceuticals, Nuclear and Petrochemical.

PEM Sheet metal is a precision metal fabricator of frame work for use in electrical enclosures as well as process pipe work and equipment for the food, beverage, oil and pharmaceutical industries.


ISO 9001 Accredited



  • Petrochemical Oil Burner

  • Control Desk

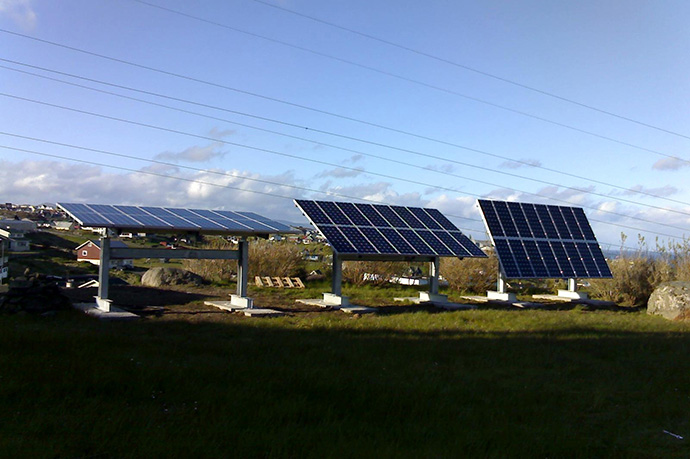

  • Large Solar Array

  • Welded and fabricated burner on test.
    ASMI IX Coded welding.
    High pressure tested.

  • Mild Steel welded fabrication.
    Food industry application
    Final finish, powder coat.

  • Mild steel box section fabrication
    Hot Dip Galvanized finish.
    Laser cut braces and brackets.

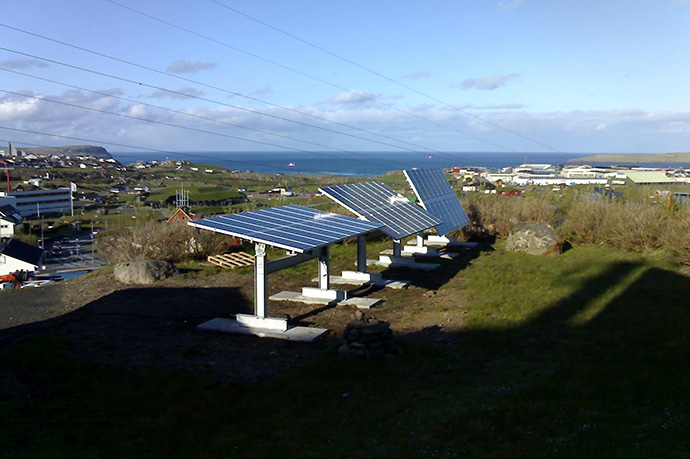

  • Solar Array

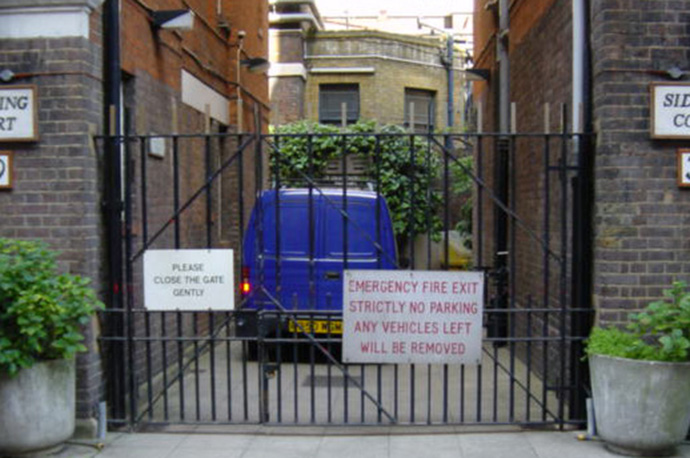

  • Architectural Gate

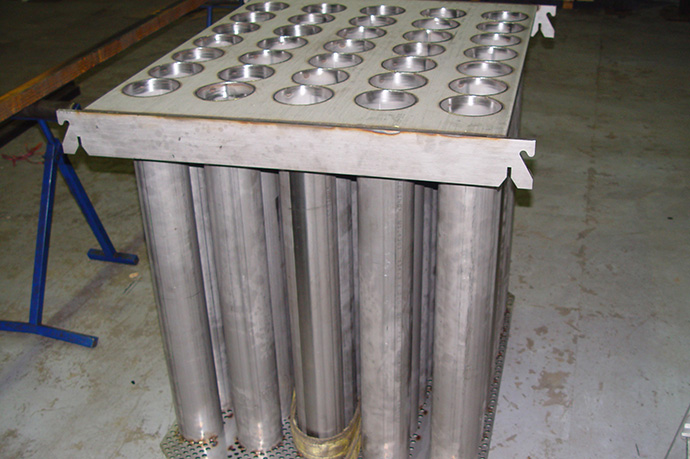

  • Fuel Rod Carrier

  • Mild steel box section fabrication
    Hot Dip Galvanized finish.
    Laser cut braces and brackets.

  • Mild steel box and bar stock
    Custom manufactures hinges.
    Phosphate dip/ powder coat finish.

  • Stainless Steel Welded Construction.
    Laser cut stainless braces.
    Extensive TIG welding.

  • Fabricated Enclosure Frame

  • Resonator Chamber

  • Welded Frame

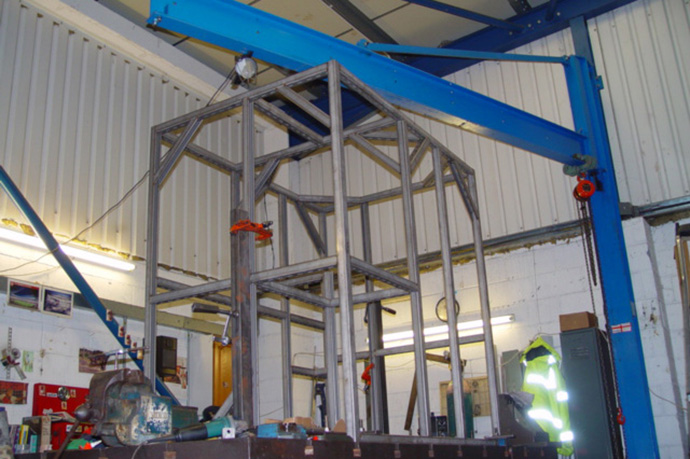

  • Large, accurate framework.
    Used in semiconductor manufacture.
    Extensive Q.A.

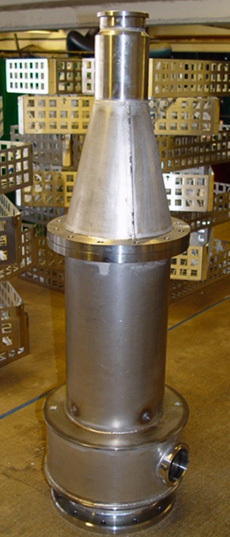

  • Rolled steel and machined construction.
    Copper plated finish.
    Accurate.

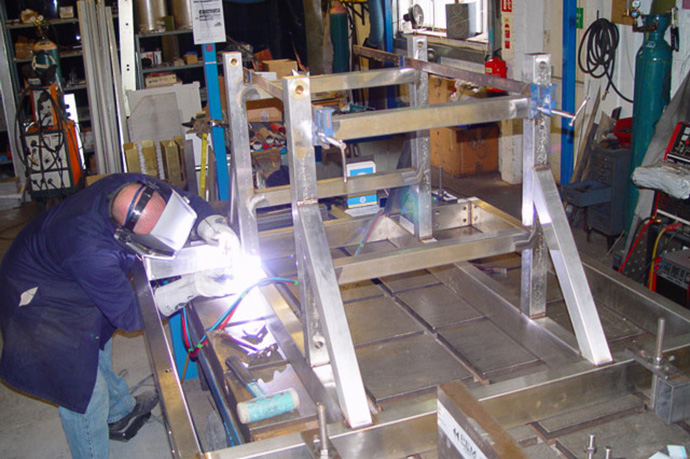

  • Manual TIG Welded Frame.
    Accurate construction.
    Detailed inspection.

  • Welded Burner Head

  • Pipework Fabrication

  • Welded Manifold

  • Head assembly of oil burner.
    Stainless welded fabrication
    Assembled and pressure tested.

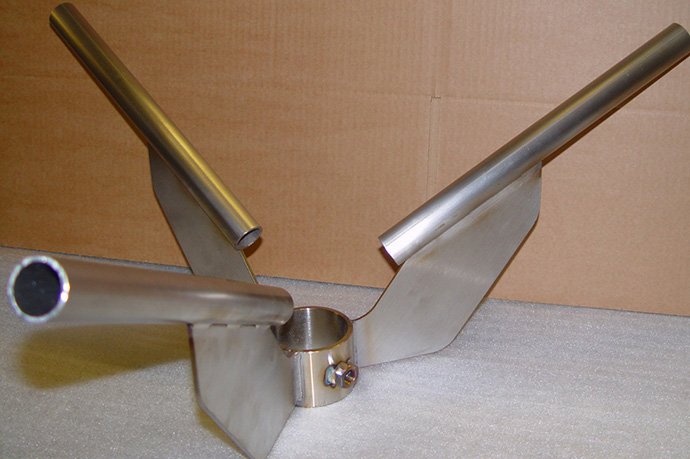

  • Pipework, fabricated.
    TIG Welded.
    Laser cut plates.

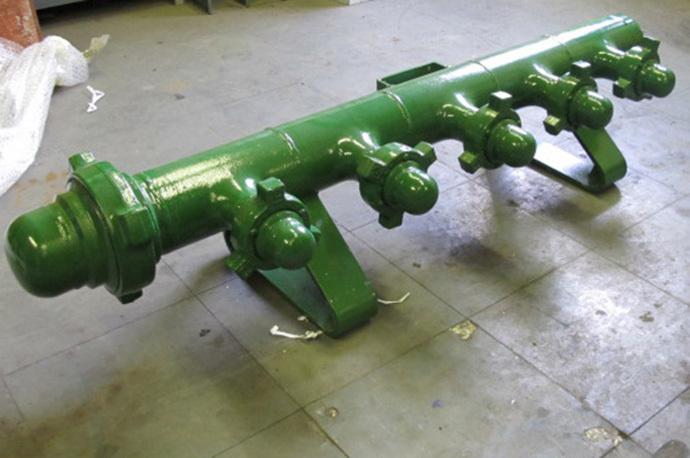

  • Mild Steel welded Manifold.
    Corrosion resistant finish.
    Fire suppression application.

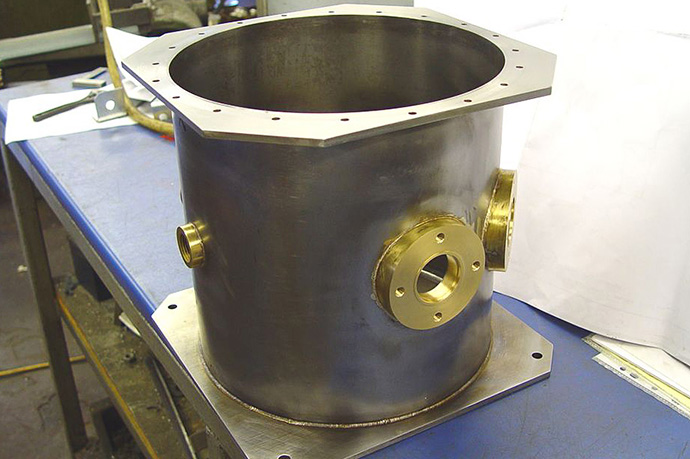

  • Machined Chamber

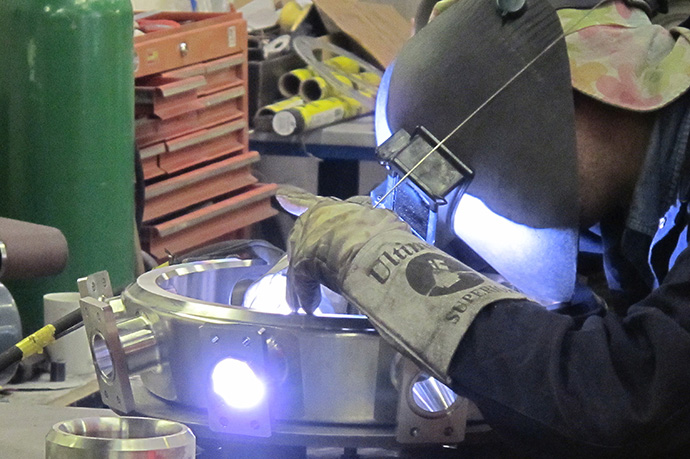

  • TIG Welding of Chamber

  • TIG Welding Chamber

  • Stainless Steel Chamber.
    5 axis CNC machined.

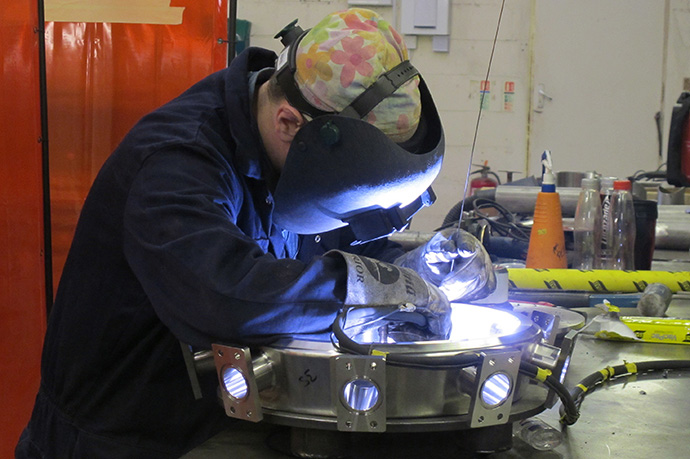

  • TIG Welding

  • TIG Welding

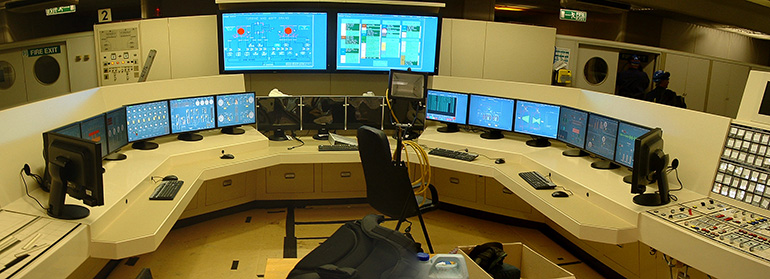

Custom Control Room, Power Generation Sector, Desk and Cabinets fabricated and installed by PEM.
